POS-Rod End

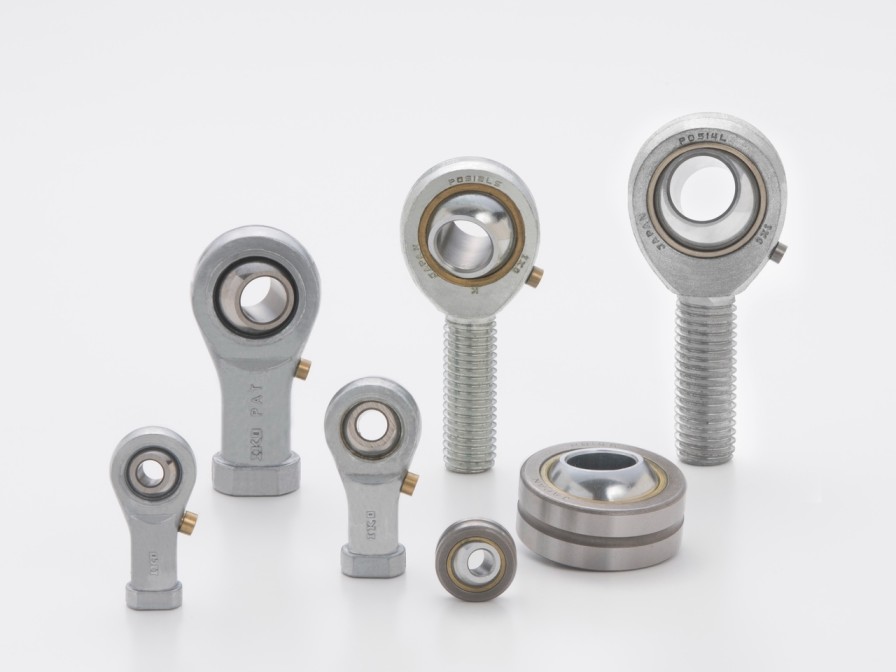

Jms Industrial Solution PILLOBALL Rod Ends (also known as spherical rod ends or spherical plain bearings) are compact, self-aligning spherical bushings designed to act as link mechanisms in various machines.

Request Quote

PILLOBALL Rod Ends (also known as spherical rod ends or spherical plain bearings) are compact, self-aligning spherical bushings designed to act as link mechanisms in various machines. They are engineered to provide smooth rotational and oscillatory motion while offering excellent wear resistance and high loading capabilities.

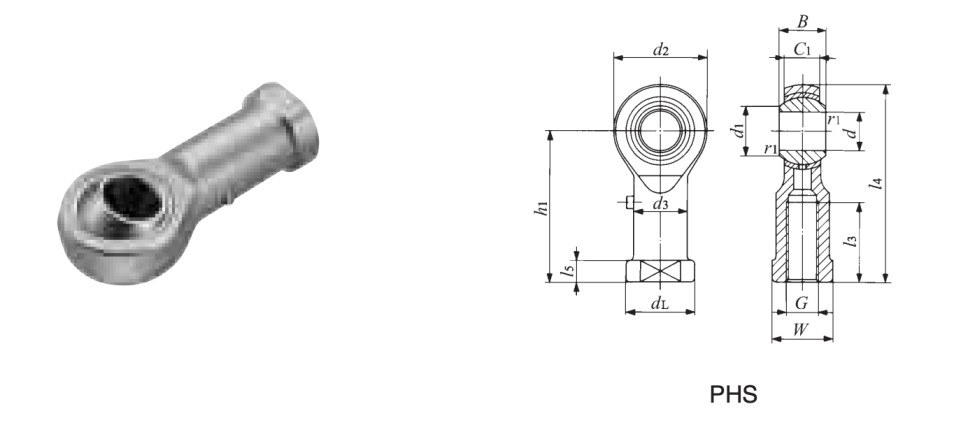

Identification No.	Mass (g)	Thread G	d	d2	C1	B	d1	l2	h	l1	r1s min	Ball Dia. mm (inch)	Cd (N)	Cs (N)
POS 3	5	M3×0.5	3	12	4.5	6	5.2	33	27	15	0.2	7.938 (5/16)	1750	1220
POS 4	8.1	M4×0.7	4	14	5.3	7	6.5	37	30	17	0.2	9.525 (3/8)	2480	2060
POS 5A	12.5	M5×0.8	5	16	6	8	7.7	41	33	20	0.2	11.112 (7/16)	3270	3340
POS 6A	19	M6×1	6	18	6.75	9	9	45	36	22	0.2	12.700 (1/2)	4200	4730
POS 8A	32	M8×1.25	8	22	9	12	10.4	53	42	25	0.2	15.875 (5/8)	7010	8640
POS 10A	54	M10×1.5	10	26	10.5	14	12.9	61	48	29	0.2	19.050 (3/4)	9810	13300
POS 12A	85	M12×1.75	12	30	12	16	15.4	69	54	33	0.2	22.225 (7/8)	13100	16900
POS 14A	126	M14×2	14	34	13.5	19	16.9	77	60	36	0.2	25.400 (1)	16800	20900
POS 16A	185	M16×2	16	38	15	21	19.4	85	66	40	0.2	28.575 (1 1/8)	21000	25400
POS 18A	260	M18×1.5	18	42	16.5	23	21.9	93	72	44	0.2	31.750 (1 1/4)	25700	30200
POS 20	340	M20×1.5	20	46	18	25	24.4	101	78	47	0.2	34.925 (1 3/8)	30800	35500
POS 22	435	M22×1.5	22	50	20	28	25.8	109	84	51	0.2	38.100 (1 1/2)	37400	41700
POS 25	650	M24×2	24	60	22	31	29.6	124	94	57	0.6	42.862 (1 11/16)	46200	72700
POS 28	875	M27×2	27	66	25	35	32.3	136	103	62	0.6	47.625 (1 7/8)	58400	87000
POS 30	1070	M30×2	30	70	25	37	34.8	145	110	66	0.6	50.800 (2)	62300	92200
