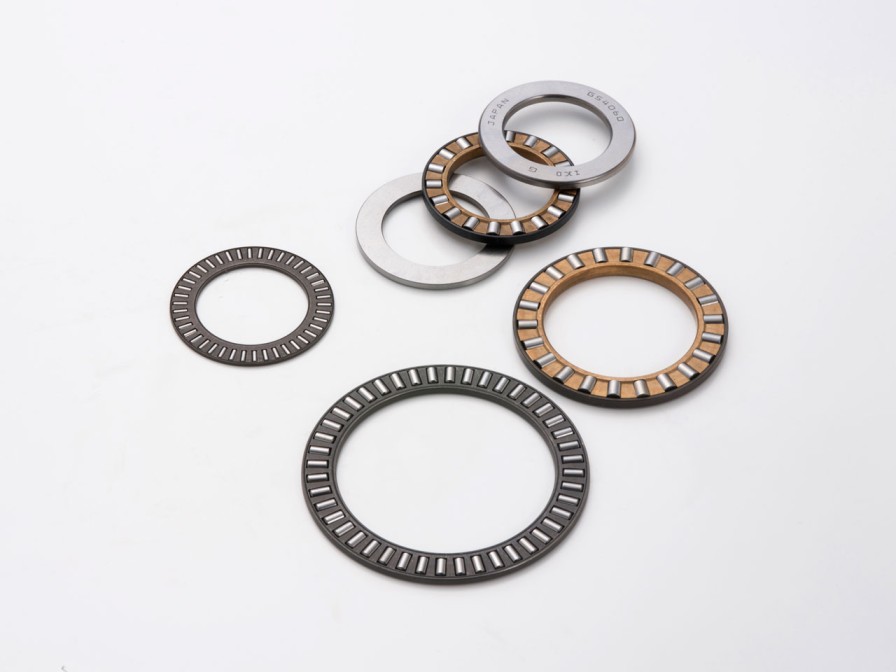

NTB-Thrust Needle Roller Bearing

Thrust Bearings consist of a precisely made cage and needle rollers, offering exceptional performance in a compact design. The Thrust Needle Roller Bearings (NTB Series) are engineered for applications requiring high accuracy, speed, and the ability to withstand heavy, fluctuating axial loads.

Request Quote

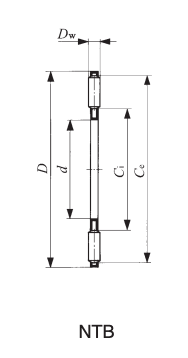

Shaft dia. (mm)	Bearing No.	Mass (g)	D (mm)	Dₚ (mm)	s (mm)	B (mm)	rₛ min (mm)	Cᵢ (N)	Cₑ (N)	Basic Dynamic Load Rating C (N)	Basic Static Load Rating C₀ (N)	Allowable Rotational Speed (min⁻¹)
10	NTB 1024	3.3	24	2	1	2.75	0.3	14	22	7820	23900	15000
12	NTB 1226	3.8	26	2	1	2.75	0.3	16	24	8340	26900	13000
15	NTB 1528	4.1	28	2	1	2.75	0.3	18	26	8830	29900	12000
16	NTB 1629	4.3	29	2	1	2.75	0.3	19	27	9070	31400	11000
17	NTB 1730	4.5	30	2	1	2.75	0.3	20	28	9320	32900	10500
18	NTB 1831	4.7	31	2	1	2.75	0.3	21	29	9550	34400	10000
20	NTB 2035	6.1	35	2	1	2.75	0.3	23	33	11700	46500	9000
25	NTB 2542	8.2	42	2	1	3	0.6	29	40	14400	64700	7500
30	NTB 3047	9.4	47	2	1	3	0.6	34	45	15400	73300	6500
35	NTB 3552	10.6	52	2	1	3.5	0.6	39	50	16300	81900	5500
40	NTB 40603	22	60	3	1	3.5	0.6	45	57	24200	108000	5000
45	NTB 4565	24.5	65	3	1	4	0.6	50	62	25900	121000	4500
50	NTB 5070	26.5	70	3	1	4	0.6	55	67	27600	135000	4000
55	NTB 5578	33.5	78	3	1	5	0.6	61	75	32400	171000	4000
60	NTB 6085	38.5	85	3	1	4.75	1	66	82	38200	219000	3500
65	NTB 6590	41.5	90	3	1	5.25	1	71	87	40100	237000	3000
70	NTB 7095	61	95	4	1	5.25	1	75	91	47400	244000	3000
75	NTB 75100	65	100	4	1	5.75	1	80	96	48400	256000	3000
80	NTB 80105	68.5	105	4	1	5.75	1	85	101	49500	267000	2500
85	NTB 85110	72	110	4	1	5.75	1	90	106	50300	279000	2500
90	NTB 90120	92	120	4	1	6.5	1	96	116	64500	394000	2500
100	NTB 100135	119	135	4	1	7	1	107	131	80300	541000	2000
110	NTB 110145	129	145	4	—	7	1	117	141	83200	578000	2000
120	NTB 120155	139	155	4	—	7	1	127	151	87900	634000	1800
130	NTB 130170	225	170	5	—	9	1	137	165	120000	839000	1700
