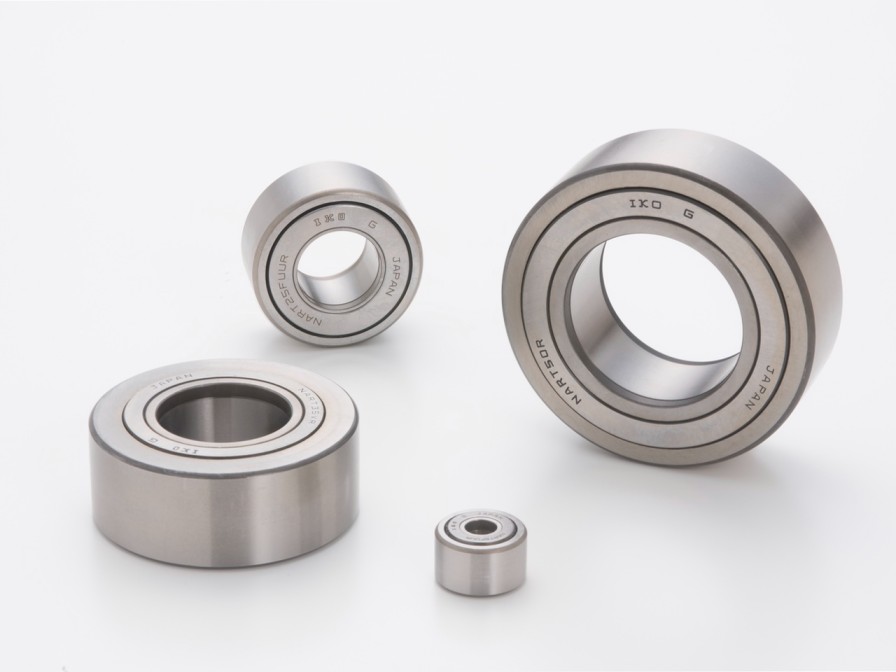

NART-Cam Roller

Roller Followers are specialized bearings featuring needle rollers incorporated in a thick-walled outer ring, designed specifically for outer ring rotation.

Request Quote

Roller Followers are specialized bearings featuring needle rollers incorporated in a thick-walled outer ring, designed specifically for outer ring rotation. These bearings are widely used as follower bearings for cam mechanisms and for linear motion guidance in conveying equipment.

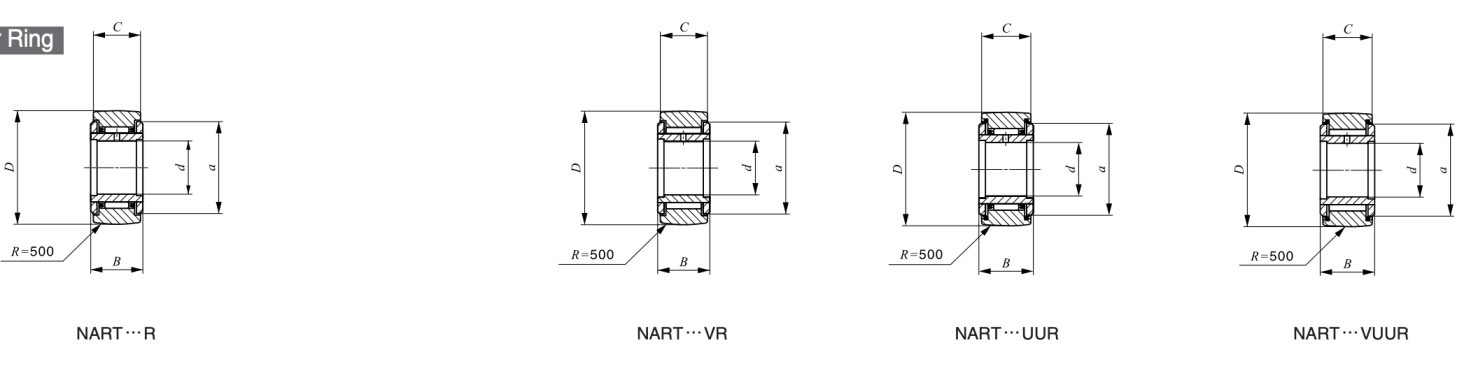

Shaft dia. (mm)	Shielded With Cage	Shielded Full Compl.	Sealed With Cage	Sealed Full Compl.	Mass (g)	d	D	B	C	a	C (N)	C₀ (N)	Max. Allow. Static Load (N)
5	NART 5 R	-	NART 5 UUR	-	14.5	5	16	12	11	12	3650	3680	3680
5	-	NART 5 VR		NART 5 VUUR	15.1	5	16	12	11	12	6810	8370	7310
6	NART 6 R	-	NART 6 UUR	-	20.5	6	19	12	11	14	4250	4740	4740
6	-	NART 6 VR	-	NART 6 VUUR	21.5	6	19	12	11	14	7690	10300	10300
8	NART 8 R	-	NART 8 UUR	-	41.5	8	24	15	14	17.5	5640	5900	5900
8	-	NART 8 VR	-	NART 8 VUUR	42.5	8	24	15	14	17.5	11800	15600	15600
10	NART 10 R	-	NART 10 UUR	-	64.5	10	30	15	14	23.5	8030	7540	7540
10	-	NART 10 VR	-	NART 10 VUUR	66.5	10	30	15	14	23.5	15600	18100	17500
12	NART 12 R	-	NART 12 UUR	-	71	12	32	15	14	25.5	8580	8470	8470
12	-	NART 12 VR	-	NART 12 VUUR	73	12	32	15	14	25.5	16800	20500	18600
15	NART 15 R	-	NART 15 UUR	-	102	15	35	19	18	29	13700	16400	16400
15	-	NART 15 VR	-	NART 15 VUUR	106	15	35	19	18	29	25200	36400	36400
17	NART 17 R	-	NART 17 UUR	-	149	17	40	21	20	32.5	17600	21000	21000
17	-	NART 17 VR	-	NART 17 VUUR	155	17	40	21	20	32.5	32000	46300	33100
20	NART 20 R	-	NART 20 UUR	-	250	20	47	25	24	38	23000	30700	30700
20	-	NART 20 VR	-	NART 20 VUUR	255	20	47	25	24	38	41600	67300	67300
25	NART 25 R	-	NART 25 UUR	-	285	25	52	25	24	43	24700	35400	35400
25	-	NART 25 VR	-	NART 25 VUUR	295	25	52	25	24	43	45500	79100	79100
30	NART 30 R	-	NART 30 UUR	-	470	30	62	29	28	50.5	36000	51400	51400
30	-	NART 30 VR	-	NART 30 VUUR	485	30	62	29	28	50.5	59900	110000	92500
35	NART 35 R	-	NART 35 UUR	-	640	35	72	29	28	53.5	35700	57400	57400
35	-	NART 35 VR	-	NART 35 VUUR	655	35	72	29	28	53.5	63100	121000	121000
40	NART 40 R	-	NART 40 UUR	-	845	40	80	32	30	61.5	44900	81500	81500
40	-	NART 40 VR	-	NART 40 VUUR	865	40	80	32	30	61.5	76300	164000	164000
