LME-Linear Bearing

Linear Bushing LME Series is a high-precision, high-performance linear motion rolling guide engineered by IKO (Nippon Thompson Co., Ltd.) of Japan.

Request Quote

Linear Bushing LME Series is a high-precision, high-performance linear motion rolling guide engineered by IKO (Nippon Thompson Co., Ltd.) of Japan. The LME series is designed to perform endless linear motion in the axial direction while maintaining smooth, low-frictional rolling contact with the shaft. It is the European-standard counterpart to the metric LM series, providing design flexibility for manufacturers integrating IKO quality into existing systems.

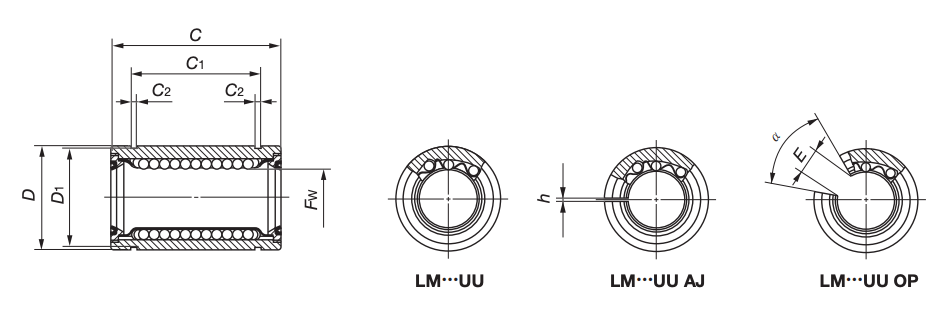

Shaft Ø (mm)	Standard Type	Raceway Std	Mass Std (g)	Adj. Clearance Type	Raceway Adj	Mass Adj (g)	Open Type	Raceway Open	Mass Open (g)	Fw (mm)	D (mm)	C (mm)	C₁ (mm)	C₂ (mm)	D₁ (mm)	h (mm)	E (mm)	α (°)	C (N) A	C (N) B	C₀ (N) A	C₀ (N) B
5	LME 51222 N UU*	4	11	LME 51222 N UU AJ*	4	9.5	–	–	–	5	12	22	14.5	1.1	11.5	1	–	–	90.8	104	219	310
8	LME 81625 UU*	4	20	LME 81625 N UU AJ*	4	19	–	–	–	8	16	25	16.5	1.1	15.2	1	–	–	121	139	255	361
12	LME 122232 UU*	4	41.5	LME 122232 N UU AJ*	4	40	LME 122232 N UU OP*	3	30	12	22	32	22.9	1.3	21	1.5	7.5	78	259	298	503	711
16	LME 162636 UU*	4	56.5	LME 162636 N UU AJ*	4	54	LME 162636 N UU OP*	3	46	16	26	36	24.9	1.3	24.9	1.5	10	78	283	325	514	726
20	LME 203245 UU*	4	96	LME 203245 N UU AJ*	4	91	LME 203245 N UU OP*	4	75	20	32	45	31.5	1.6	30.3	2	10	60	562	668	1010	1470
25	LME 254058 UU*	5	222	LME 254058 N UU AJ*	5	212	LME 254058 N UU OP*	5	181	25	40	58	44.1	1.85	37.5	2	12.5	60	920	974	1780	2280
30	LME 304768 UU*	6	338	LME 304768 N UU AJ*	6	325	LME 304768 N UU OP*	5	272	30	47	68	52.1	1.85	44.5	2	12.5	50	1350	1430	2500	3200
40	LME 406280 UU*	6	712	LME 406280 N UU AJ*	6	694	LME 406280 N UU OP*	5	600	40	62	80	60.6	2.15	59	3	16.8	50	2030	2150	3620	4640
50	LME 5075100 UU*	6	1147	LME 5075100 N UU AJ*	6	1127	LME 5075100 UU OP*	5	1080	50	75	100	77.6	2.65	72	3	21	50	3940	4180	7130	9120
60	LME 6090125 UU*	6	2051	LME 6090125 N UU AJ*	6	2050	LME 6090125 N UU OP*	5	1580	60	90	125	101.7	3.15	86.5	3	27.2	54	4760	5040	8150	10400
80	LME 80120165 UU*	6	5030	LME 80120165 N UU AJ*	6	4930	LME 80120165 UU OP*	5	4210	80	120	165	133.7	4.15	116	3	36.3	54	8710	9220	14500	18500
