Linear Motion Rolling Guide

Request Quote

Linear Motion Rolling Guides are designed to ensure smooth, accurate, and low-friction movement in various mechanical and automation systems. Components such as L-Ball Rod Ends (LHSA Series) play a vital role in maintaining alignment, reducing wear, and enabling efficient power transmission. These self-aligning elements help accommodate angular misalignment, making them ideal for dynamic applications where precision and reliability are essential.

No.	Type & Size	A	B	C	D	E	F	G	H	J	K
1	AH15	32.4	16.2	19	11.57	4.8	9.47	13.5	10.74	3.43	2.5
2	AH20	43.1	21.55	24.3	14.83	2.55	13.12	18.9	13.02	4.78	2.5
3	AH25	46.8	23.4	29.3	16.78	5.4	15.72	22.9	16.5	4.78	2.5
4	AH30	58.4	29.2	35	32.22	5.35	18.43	26.8	20	5.42	3
5	AH35	68.4	34.2	38.9	35.13	14.2	23.58	33.18	21.5	7.44	3
6	AH45	82.4	42.2	49.2	33.3	4.2	28.82	40.49	28.25	7.31	3
7	AE15	33.5	16.75	18.7	13.18	2.15	10.9	11.13	7.89	4.78	2
8	AE20	41.5	20.75	20.9	14.17	2.13	14.88	17.78	9.46	4.9	2
9	AE25	47.5	23.75	24.9	17.91	2.2	16.5	18.75	10.92	6.95	2

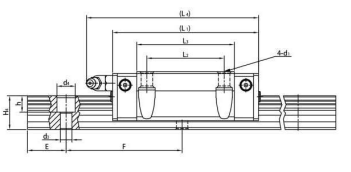

AH-D/AH-DG

Linear Motion Rolling Guides are designed to ensure smooth, accurate, and low-friction movement in various mechanical and automation systems.

Part No.	Dimensions of assembly (mm)				Dimensions of slider (mm)						Dimensions of rail (mm)						Basic load rating		Static moment rating			Weight
Part No.	H	H1	N	W	W1	W2	L	L1	L2	L3	WR	HR	D	h	d	P	C	C0	MR	MP	MY	Slider	Rail
AH15D	28	43	9.5	34	26	41.4	26	39.4	66.7	94	15	15	5.3	5.3	60	M4×16	14.7	23.47	0.12	0.10	0.18	0.145	1.45
AH20D	36	46	12	44	32	77.5	36	50.5	89.5	56	6	6	20	17.5	6	M5×16	27.1	36.68	0.27	0.20	0.30	0.33	2.21
AH25D	40	5.5	12.5	48	35	84	35	58	96	-	6	10	23	22	11	M6×20	34.90	52.82	0.42	0.33	0.51	-	3.21
AH30D	45	6	16	60	40	97.4	40	70	109.4	-	8	10	25	28	12	M8×25	48.50	71.87	0.66	0.53	0.88	-	4.47
AH35D	55	7.5	18	70	50	112.4	50	80	124.4	-	12	16	34	29	14	M8×25	64.60	93.88	1.16	0.81	1.45	-	6.30
AH45D	70	9.5	20.5	86	60	133.8	60	97	152.3	-	10	17	45	38	20	M12×35	103.8	146.71	1.98	1.55	2.73	-	10.41

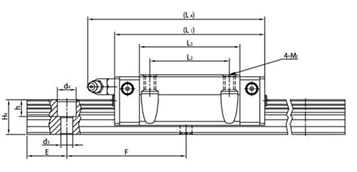

AH-T/AH-TG

Linear Motion Rolling Guides are designed to ensure smooth, accurate, and low-friction movement in various mechanical and automation systems.

Part No.	Dimensions of assembly (mm)				Dimensions of slider (mm)										Dimensions of rail (mm)						Mounting bolt for rail	Basic static load rating		Static moment rating			Weight (Ref.)
Part No.	H	H1	N	W	W2	W3	L1	L2	L3	L4	M1	H2	H3	W1	d3	d4	h	F	(mm)	C(kN)	Mounting bolt for rail	C0(kN)	MR	MP	MY	Slider (kg)	Rail (kg/m)
AH 15T	24	4.3	16	47	38	4.5	61.4	30	39.4	(66.7)	M5	0.9	3.95	15	15	4.5	7.5	5.3	60	M4×16	14.70	23.47	0.12	0.10	0.10	0.17	1.45
AH 20T	30	4.6	21.5	63	53.5	7	77.5	40	50	(89.5)	M6	10	6	20	17.5	6	9.5	8.5	60	M5×16	27.10	36.68	0.27	0.20	0.20	0.40	2.21
AH 20TG							92.2	65.2	(104.2)												32.70	47.96	0.35	0.35	0.35	0.52
AH 25T	36	5.5	23.5	70	57	6.5	84	45	58	(96)	M8	14	6	23	22	7	11	9	60	M6×20	34.90	52.82	0.42	0.33	0.33	0.59	3.21
AH 25TG							104.6	78.6	(116.6)												42.20	69.07	0.56	0.57	0.57	0.80
AH 30T	42	6	31	90	72	9	97.4	52	70	(109.4)	M10	16	6.5	28	26	9	14	12	80	M8×25	48.50	71.87	0.66	0.53	0.53	1.09	4.47
AH 30TG							120.4	93	(132.4)												58.60	93.99	0.88	0.91	0.91	1.44
AH 35T	48	7.5	33	100	82	11	112.4	60	80	(150.2)	M10	18	9	34	29	9	14	12	80	M8×25	64.60	93.88	1.54	1.40	1.40	2.06	6.30
AH 45T	60	9.5	37.5	120	100	13	133.8	80	97	(152.3)	M12	15.1	8.5	45	38	14	20	17	105	M12×35	103.8	146.71	1.98	1.55	1.55	2.79	10.41
AH 45TG							165.6	128.8	(184.1)												125.3	191.85	2.63	2.68	2.68	3.69

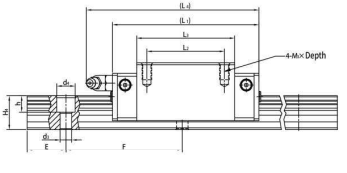

AH/AH-G

Linear Motion Rolling Guides are designed to ensure smooth, accurate, and low-friction movement in various mechanical and automation systems.

Part No.	Dimensions of assembly (mm)				Dimensions of slider (mm)										Dimensions of rail (mm)						Mounting bolt for rail	Basic static load rating		Static moment rating			Weight (Ref.)
Part No.	H	H1	N	W	W2	W3	L1	L2	L3	L4	H3	H2	d1	W1	d3	d4	h	F	(mm)	C(kN)	Mounting bolt for rail	C0(kN)	MR	MP	MY	Slider (kg)	Rail (kg/m)
AH 15	24	4.3	16	47	38	4.5	61.4	30	39.4	(66.7)	3.95	6.95	4.5	15	15	4.5	7.5	5.3	60	M4×16	14.70	23.47	0.12	0.10	0.10	0.17	1.45
AH 20	30	4.6	21.5	63	53	7	77.5	40	50.5	(89.5)	9.5	6	20	17.5	6	9.5	8.5	60		M5×16	27.10	36.68	0.27	0.20	0.20	0.40	2.21
AH 20G							92.2	65.2	(104.2)												32.70	47.96	0.35	0.35	0.35	0.52
AH 25	36	5.5	23.5	70	57	6.5	84	45	58	(96)	6	10	7	23	22	7	11	9	60	M6×20	34.90	52.82	0.42	0.33	0.33	0.59	3.21
AH 25G							104.6	78.6	(116.6)												42.20	69.07	0.56	0.57	0.57	0.80
AH 30	42	6	31	90	72	9	97.4	52	70	(109.4)	6.5	10	9	28	26	9	14	12	80	M8×25	48.50	71.87	0.66	0.53	0.53	1.09	4.47
AH 30G							120.4	93	(132.4)												58.60	93.99	0.88	0.92	0.92	1.44
AH 35	48	7.5	33	100	82	9	112.4	60	80	(124.4)	9	13	9	34	29	9	14	12	80	M8×25	64.60	93.88	1.16	0.81	0.81	1.56	6.30
AH 35G							138.2	105.8	(150.2)												77.90	122.77	1.54	1.40	1.40	2.06
AH 45	60	9.5	37.5	120	100	10	133.8	80	97	(152.3)	8.5	15	11	45	38	14	20	17	105	M12×35	103.8	146.71	1.98	1.55	1.55	2.79	10.41
AH 45G							165.6	128.8	(184.1)												125.3	191.85	2.63	2.68	2.68	3.69

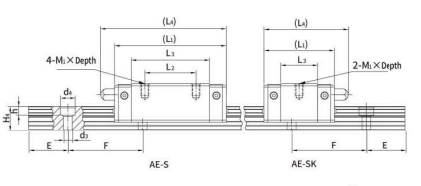

AE-S/AE-SK

Linear Motion Rolling Guides are designed to ensure smooth, accurate, and low-friction movement in various mechanical and automation systems.

Part No.	Dimensions of assembly (mm)				Dimensions of slider (mm)									Dimensions of rail (mm)						Mounting bolt for rail	Basic dynamic load ratings		Static moment rating			Weight (Ref.)
Part No.	H	H1	N	W	W2	W3	L1	L2	L3	L4	M	Depth	H3	W1	d3	d5	h	F	(mm)	Mounting bolt for rail	C(kN)	C0(kN)	MR	MP	MY	Slider (kg)	Rail (kg/m)
AE 15SK	24	4.5	9.5	34	26	4	40.1	23.1	(46)		M4	6	5.5	15	12.5	4.5	7.5	5.3	60	M4×16	5.35	9.40	0.08	0.04	0.04	0.09	1.25
AE 15S							56.8	26	39.8	(62.5)											7.83	16.19	0.13	0.10	0.10	0.15
AE 20SK	28	6	11	42	32	5	50	29	(55.7)		M5	7	6	20	15.5	6	9.5	8.5	60	M5×16	7.23	12.74	0.13	0.06	0.06	0.15	2.08
AE 20S							69.1	32	48.1	(81.1)											10.31	21.13	0.22	0.16	0.16	0.24
AE 25S	33	7	12.5	48	35	6.5	82.6	35	59	(94.6)	M6	9	8	18	7	11	9	60		M6×20	16.27	32.40	0.38	0.32	0.32	0.41	2.67
