GE-Sperical Plain Bearing

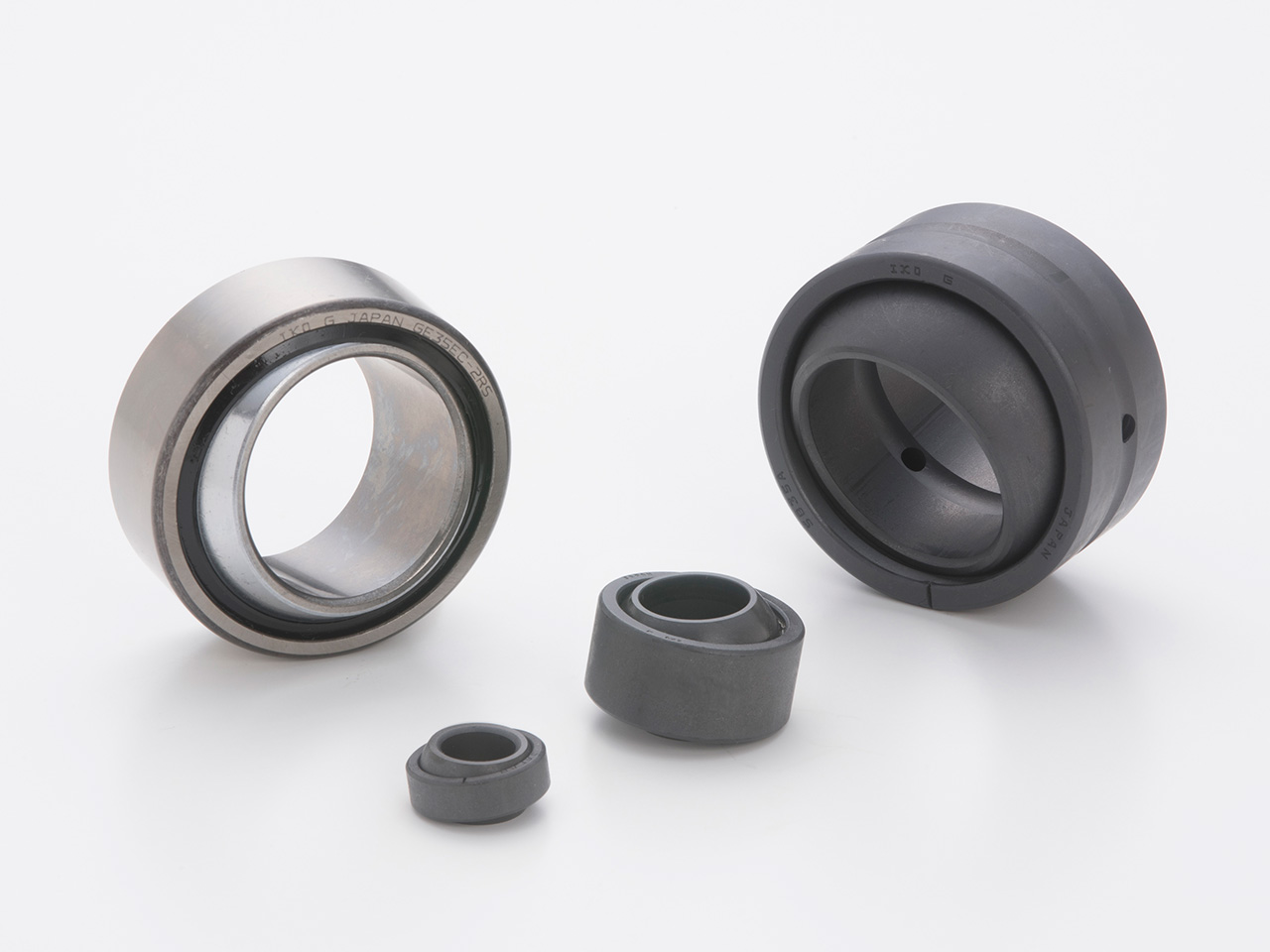

Spherical Bushings are designed to handle complex loads and solve angular motion challenges without the worry of misalignment. The GE-Series Radial Spherical Plain Bearings are steel-on-steel types, ideal for applications subject to heavy alternating and shock loads.

Request Quote

Shaft Dia. (mm)	Bearing No. (No Seal)	Bearing No. (With Seals)	Mass (kg)	d	D	B	C	dK	r1s min	r2s min	α	α1	da min	da max	Da min	Da max	Cd (N)	Cs (N)
4	GE 4E	–	0.003	4	12	5	3	8	0.3	0.3	16	–	6	6	9.5	8	2350	14100
5	GE 5E	–	0.004	5	14	6	4	10	0.3	0.3	13	–	7.5	8	11.5	10	3920	23500
6	GE 6E	–	0.004	6	14	6	4	10	0.3	0.3	13	–	8	8	11.5	10	3920	23500
8	GE 8E	–	0.008	8	16	8	5	13	0.3	0.3	15	–	10	10	13.5	13	6370	38200
10	GE 10E	–	0.012	10	19	9	6	16	0.3	0.3	12	–	12.5	13	16.5	15.5	9410	56500
12	GE 12E	–	0.017	12	22	10	7	18	0.3	0.3	11	–	14.5	15	19.5	17	12400	74100
15	GE 15ES	GE 15ES-2RS	0.032	15	26	12	9	22	0.3	0.3	8	5	17.5	18	23.5	22.5	19400	117000
17	GE 17ES	GE 17ES-2RS	0.049	17	30	14	10	25	0.3	0.3	10	7	19.5	20.5	27.5	26	24500	147000
20	GE 20ES	GE 20ES-2RS	0.065	20	35	16	12	29	0.3	0.3	9	6	22.5	24	32.5	30.5	34100	205000
25	GE 25ES	GE 25ES-2RS	0.115	25	42	20	16	35.5	0.6	0.6	7	4	29	29	37.5	37	55700	334000
30	GE 30ES	GE 30ES-2RS	0.16	30	47	22	18	40.7	0.6	0.6	6	4	34	34	42.5	41.5	71800	431000
35	GE 35ES	GE 35ES-2RS	0.258	35	55	25	20	47	0.6	0.6	6	4	39.5	39.5	49.5	48	92200	553000
40	GE 40ES	GE 40ES-2RS	0.315	40	62	28	22	53	0.6	0.6	7	4	44.5	45	56.5	54.5	114000	686000
45	GE 45ES	GE 45ES-2RS	0.413	45	68	32	25	60	0.6	0.6	7	4	49.5	50.5	62.5	60	147000	883000
50	GE 50ES	GE 50ES-2RS	0.56	50	75	35	28	66	0.6	0.6	6	4	54.5	56	69.5	66	181000	1090000
60	GE 60ES	GE 60ES-2RS	1.1	60	90	44	36	80	1	1	6	3	65.5	66.5	84.5	79	282000	1690000
70	GE 70ES	GE 70ES-2RS	1.54	70	105	49	40	92	1	1	6	4	75.5	77.5	99.5	91	361000	2170000
80	GE 80ES	GE 80ES-2RS	2.29	80	120	55	45	105	1	1	6	4	85.5	89	114.5	103	463000	2780000
90	GE 90ES	GE 90ES-2RS	2.82	90	130	60	50	115	1	1	5	3	95.5	98	124.5	112	564000	3380000
100	GE 100ES	GE 100ES-2RS	4.43	100	150	70	55	130	1	1	7	5	105.5	109.5	144.5	127	701000	4210000
110	GE 110ES	GE 110ES-2RS	4.94	110	160	70	55	140	1	1	6	4	115.5	121	154.5	138	755000	4530000
120	GE 120ES	GE 120ES-2RS	8.12	120	180	85	70	160	1	1	6	4	125.5	135.5	174.5	154	1100000	6590000
140	GE 140ES	GE 140ES-2RS	11.4	140	210	90	70	180	1	1	7	5	145.5	155.5	204.5	176	1240000	7410000
160	GE 160ES	GE 160ES-2RS	14.4	160	230	105	80	200	1	1	8	6	165.5	170	224.5	198	1570000	9410000
180	GE 180ES	GE 180ES-2RS	18.9	180	260	105	80	225	1.1	1.1	6	5	187	199	253	221	1770000	10600000
200	GE 200ES	GE 200ES-2RS	28.1	200	290	130	100	250	1.1	1.1	7	6	207	213.5	283	244	2450000	14700000
220	GE 220ES	GE 220ES-2RS	36.1	220	320	135	100	275	1.1	1.1	8	6	227	239.5	313	269	2700000	16200000
240	GE 240ES	GE 240ES-2RS	40.4	240	340	140	100	300	1.1	1.1	8	6	247	265	333	296	2940000	17700000
260	GE 260ES	GE 260ES-2RS	52	260	370	150	110	325	1.1	1.1	7	6	267	288	363	320	3510000	21000000
280	GE 280ES	GE 280ES-2RS	66	280	400	155	120	350	1.1	1.1	6	5	287	313.5	393	345	4120000	24700000
300	GE 300ES	GE 300ES-2RS	76	300	430	165	120	375	1.1	1.1	7	6	307	336.5	423	371	4410000	26500000
6	GE 6G	–	0.01	6	16	9	5	13	0.3	0.3	21	–	8.5	9	13.5	13	6370	38200
8	GE 8G	–	0.015	8	19	11	6	16	0.3	0.3	21	–	10.5	11.5	16.5	15.5	9410	56500
10	GE 10G	–	0.022	10	22	12	7	18	0.3	0.3	18	–	12.5	13	19.5	17	12400	74100
12	GE 12G	–	0.041	12	26	15	9	22	0.3	0.3	18	–	14.5	16	23.5	21	19400	117000
15	GE 15GS	GE 15GS-2RS	0.059	15	30	16	10	25	0.3	0.3	16	13	17.5	19	27.5	26	24500	147000
17	GE 17GS	GE 17GS-2RS	0.083	17	35	20	12	29	0.3	0.3	19	16	19.5	21	32.5	30.5	34100	205000
20	GE 20GS	GE 20GS-2RS	0.155	20	42	25	16	35.5	0.3	0.6	17	16	22.5	25	37.5	37	55700	334000
25	GE 25GS	GE 25GS-2RS	0.215	25	47	28	18	40.7	0.6	0.6	17	15	29.5	29.5	42.5	41.5	71800	431000
30	GE 30GS	GE 30GS-2RS	0.33	30	55	32	20	47	0.6	1	17	16	34	34	49.5	48	92200	553000
35	GE 35GS	GE 35GS-2RS	0.4	35	62	35	22	53	0.6	1	16	15	39.5	39.5	56.5	54.5	114000	686000
40	GE 40GS	GE 40GS-2RS	0.515	40	68	40	25	60	0.6	1	17	14	44.5	44.5	62.5	60	147000	883000
45	GE 45GS	GE 45GS-2RS	0.66	45	75	43	28	66	0.6	1	15	13	49.5	50	69.5	66	181000	1090000
50	GE 50GS	GE 50GS-2RS	1.5	50	90	56	36	80	0.6	1	17	16	54.5	57	84.5	79	282000	1690000
60	GE 60GS	GE 60GS-2RS	2.05	60	105	63	40	92	1	1	17	15	65.5	67	99.5	91	361000	2170000
70	GE 70GS	GE 70GS-2RS	3	70	120	70	45	105	1	1	16	14	75.5	78	114.5	103	463000	2780000
80	GE 80GS	GE 80GS-2RS	3.6	80	130	75	50	115	1	1	14	13	85.5	87	124.5	112	564000	3380000
90	GE 90GS	GE 90GS-2RS	5.41	90	150	85	55	130	1	1	15	14	95.5	98	144.5	127	701000	4210000
100	GE 100GS	GE 100GS-2RS	6.15	100	160	85	55	140	1	1	14	12	105.5	111	154.5	138	755000	4530000
110	GE 110GS	GE 110GS-2RS	9.7	110	180	100	70	160	1	1	12	14	115.5	124.5	174.5	154	1100000	6590000
120	GE 120GS	GE 120GS-2RS	15.5	120	210	115	70	180	1	1	16	15	125.5	138.5	204.5	176	1240000	7410000
140	GE 140GS	GE 140GS-2RS	19.2	140	230	130	80	200	1	1	16	15	145.5	152	224.5	195	1570000	9410000
160	GE 160GS	GE 160GS-2RS	25.4	160	260	135	80	225	1	1.1	16	14	165.5	180	253	221	1770000	10600000
180	GE 180GS	GE 180GS-2RS	34.7	180	290	155	100	250	1.1	1.1	15	13	187	196	283	244	2450000	14700000
200	GE 200GS	GE 200GS-2RS	43.8	200	320	165	100	275	1.1	1.1	15	14	207	220	313	269	2700000	16200000
220	GE 220GS	GE 220GS-2RS	51.3	220	340	175	100	300	1.1	1.1	15	14	227	243.5	333	296	2940000	17700000
240	GE 240GS	GE 240GS-2RS	66.1	240	370	190	110	325	1.1	1.1	15	14	247	263.5	363	320	3510000	21000000
260	GE 260GS	GE 260GS-2RS	81.8	260	400	205	120	350	1.1	1.1	15	14	267	283.5	393	345	4120000	24700000
280	GE 280GS	GE 280GS-2RS	97.4	280	430	210	120	375	1.1	1.1	15	14	287	310.5	423	371	4410000	26500000
15	GE 15EC	–	0.032	15	26	12	9	22	0.3	0.3	8	–	17.5	18	23.5	21.5	19400	48500
17	GE 17EC	–	0.049	17	30	14	10	25	0.3	0.3	10	–	19.5	20.5	27.5	24.5	24500	61300
20	GE 20EC	–	0.065	20	35	16	12	29	0.3	0.3	9	–	22.5	24	32.5	28	34100	85000
25	GE 25EC	–	0.115	25	42	20	16	35.5	0.6	0.6	7	–	29	29	37.5	34	55700	139000
30	GE 30EC	GE 30EC-2RS	0.16	30	47	22	18	40.7	0.6	0.6	6	4	34	34	42.5	41.5	71800	180000
35	–	GE 35EC-2RS	0.258	35	55	25	20	47	0.6	1	6	4	39.5	39.5	49.5	48	92200	230000
40	–	GE 40EC-2RS	0.315	40	62	28	22	53	0.6	1	6	4	44.5	44.5	56.5	54.5	114000	286000
45	–	GE 45EC-2RS	0.413	45	68	32	25	60	0.6	1	7	4	49.5	50.5	62.5	60	147000	368000
50	–	GE 50EC-2RS	0.56	50	75	35	28	66	0.6	1	6	4	54.5	56	69.5	66	181000	453000
60	–	GE 60EC-2RS	1.1	60	90	44	36	80	1	1	6	3	65.5	66.5	84.5	79	282000	706000
70	–	GE 70EC-2RS	1.54	70	105	49	40	92	1	1	–	4	75.5	77.5	99.5	91	361000	902000
