CR-R-Cam Follower

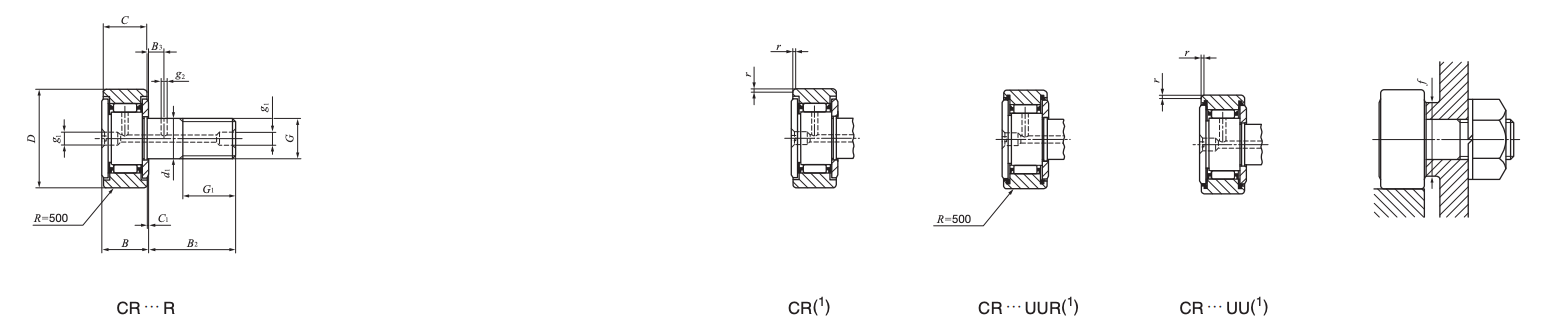

The CR-R Cam Follower is the IKO designation for their standard Stud Type Cam Follower with a crowned outer ring (for the "R" designation) and typically a full complement of rollers or a cage (depending on the suffix).

Request Quote

Stud Dia (mm)	Identification No.	Shield Type (Crowned)	Shield Type (Cylindrical)	Sealed Type (Crowned)	Sealed Type (Cylindrical)	Mass (g)	D (mm)	C (mm)	d₁ (mm)	G (UNF)	G₁ (mm)	B Max (mm)	B₂ (mm)	B₃ (mm)	C₁ (mm)	g₁ (mm)	g₂ (mm)	r (mm)	f Min. (mm)	Torque (N·m)	Dyn Load (N)	Static Load (N)
4.826	CR 8	R	—	UUR	UU	9	12.7	8.731	4.826	No.10-32	6.35	10.2	12.7	—	0.794	3.175	—	0.397	8.334	1.4	2520	2140
4.826	CR 8-1	R	—	UUR	UU	10	12.7	9.525	4.826	No.10-32	6.35	10.9	15.875	—	0.794	3.175	—	0.397	8.334	1.4	2520	2140
6.35	CR 10	R	—	UUR	UU	19	15.875	10.319	6.35	1/4-28	7.938	11.8	15.875	—	0.794	3.175	—	0.397	11.509	3.4	3650	3670
6.35	CR 10-1	R	—	UUR	UU	21	15.875	11.112	6.35	1/4-28	7.938	12.5	19.05	—	0.794	3.175	—	0.397	11.509	3.4	3650	3670
9.525	CR 12	R	—	UUR	UU	35	19.05	12.7	9.525	3/8-24	9.525	14.2	22.225	6.35	0.794	4.762	1.381	0.794	13.494	10.8	4420	5110
9.525	CR 14	R	—	UUR	UU	46	22.225	12.7	9.525	3/8-24	9.525	14.2	22.225	6.35	0.794	4.762	1.381	0.794	15.081	10.8	4790	5810
11.112	CR 16	R	—	UUR	UU	73	25.4	15.875	11.112	7/16-20	12.7	17.3	25.4	6.35	0.794	4.762	1.588	1.191	17.859	17.4	8810	10800
11.112	CR 18	R	—	UUR	UU	99	28.575	15.875	11.112	7/16-20	12.7	17.3	25.4	6.35	0.794	4.762	1.588	1.191	17.859	17.4	9180	11600
12.7	CR 20	R	—	UUR	UU	132	31.75	19.05	12.7	1/2-20	15.875	20.4	31.75	7.938	0.794	4.762	1.588	1.588	21.828	27.7	14200	16000
12.7	CR 22	R	—	UUR	UU	157	34.925	19.05	12.7	1/2-20	15.875	20.4	31.75	7.938	0.794	4.762	1.588	1.588	21.828	27.7	14200	16000
15.875	CR 24	R	—	UUR	UU	225	38.1	22.225	15.875	5/8-18	19.05	23.6	38.1	9.525	0.794	4.762	1.588	1.588	26.196	55.7	18600	24300
15.875	CR 26	R	—	UUR	UU	260	41.275	22.225	15.875	5/8-18	19.05	23.6	38.1	9.525	0.794	4.762	1.588	1.588	26.196	55.7	18600	24300
19.05	CR 28	R	—	UUR	UU	365	44.45	25.4	19.05	3/4-16	22.225	26.8	44.45	11.112	0.794	4.762	1.588	1.588	32.543	100	25100	38200
19.05	CR 30	R	—	UUR	UU	410	47.625	25.4	19.05	3/4-16	22.225	26.8	44.45	11.112	0.794	4.762	1.588	1.588	32.543	100	25100	38200
22.225	CR 32	R	—	UUR	UU	615	50.8	31.75	22.225	7/8-14	25.4	33.5	50.8	12.7	0.794	4.762	1.588	1.588	37.306	162	32500	63900
22.225	CR 36	R	—	UUR	UU	750	57.15	31.75	22.225	7/8-14	25.4	33.5	50.8	12.7	0.794	4.762	1.588	1.588	37.306	162	32500	63900
