Product Overview

CR-Cam Follower

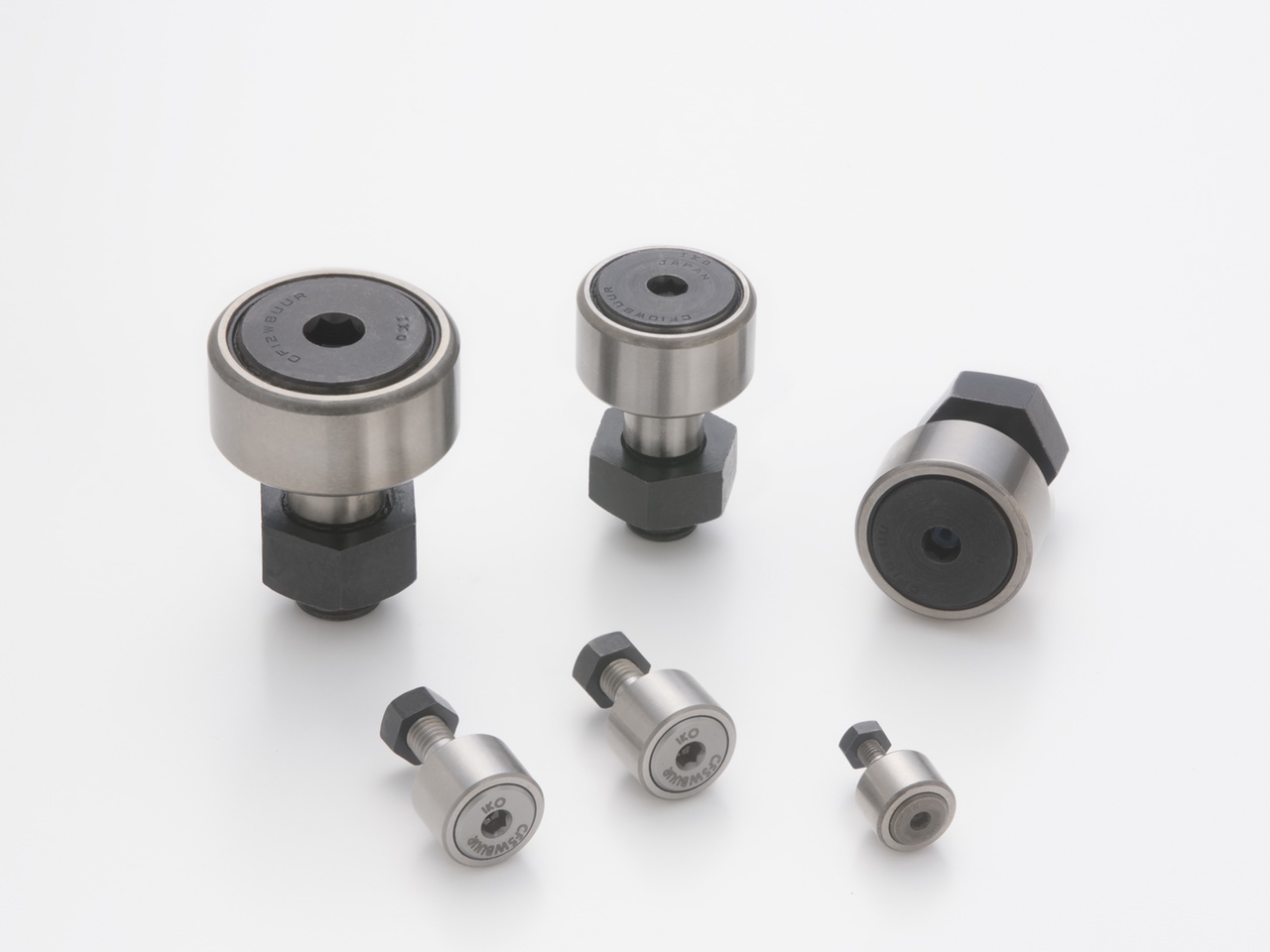

The Jms Industrial Solution Cam Followers are high-rigidity, high-accuracy bearings with a stud that incorporates needle rollers in a thick-walled outer ring. They are expertly designed for outer ring rotation and are widely used as follower bearings for cam mechanisms and various linear motion systems in demanding applications like machine tools, industrial robots, electronic devices, and OA equipment.

Request Quote

Cam Followers are high-rigidity, high-accuracy bearings with a stud that incorporates needle rollers in a thick-walled outer ring. They are expertly designed for outer ring rotation and are widely used as follower bearings for cam mechanisms and various linear motion systems in demanding applications like machine tools, industrial robots, electronic devices, and OA equipment.

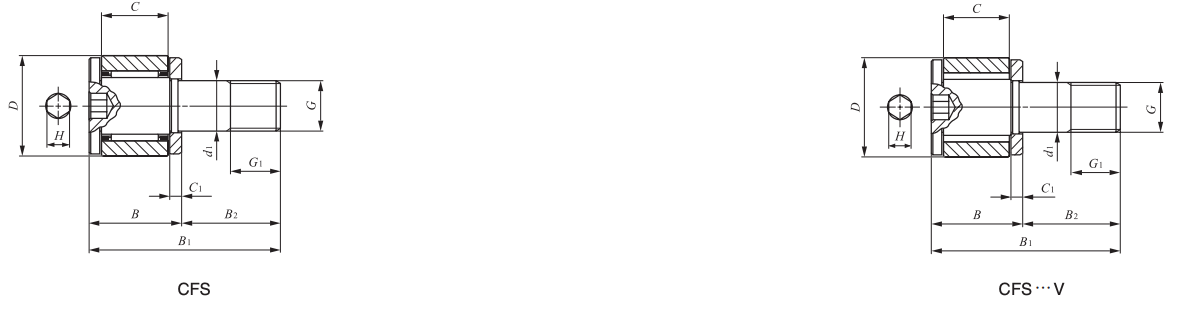

Select Stud Dia (mm) Identification No. Shield Type (Crowned) Shield Type (Cylindrical) Sealed Type (Crowned) Sealed Type (Cylindrical) Mass (g) D (mm) C (mm) d₁ (mm) G (UNF) G₁ (mm) B Max (mm) B₂ (mm) B₃ (mm) C₁ (mm) g₁ (mm) g₂ (mm) H (mm) r (mm) f Min. (mm) Torque (N·m) Dyn Load (N) Static Load (N)
4.826 CR 8 BR B BUUR BUU 9 12.7 8.731 4.826 No.10-32 6.35 10.2 12.7 — 0.794 — — 3.175 0.397 8.334 1.4 2520 2140
4.826 CR 8-1 BR B BUUR BUU 10 12.7 9.525 4.826 No.10-32 6.35 10.9 15.875 — 0.794 — — 3.175 0.397 8.334 1.4 2520 2140
6.35 CR 10 BR B BUUR BUU 19 15.875 10.319 6.35 1/4-28 7.938 11.8 15.875 — 0.794 — — 3.175 0.397 11.509 3.4 3650 3670
6.35 CR 10-1 BR B BUUR BUU 21 15.875 11.112 6.35 1/4-28 7.938 12.5 19.05 — 0.794 — — 3.175 0.397 11.509 3.4 3650 3670
9.525 CR 12 BR B BUUR BUU 35 19.05 12.7 9.525 3/8-24 9.525 14.2 22.225 6.35 0.794 4.762 1.588 4.762 0.794 13.494 10.8 4420 5110
9.525 CR 14 BR B BUUR BUU 46 22.225 12.7 9.525 3/8-24 9.525 14.2 22.225 6.35 0.794 4.762 1.588 4.762 0.794 15.081 10.8 4790 5810
11.112 CR 16 BR B BUUR BUU 73 25.4 15.875 11.112 7/16-20 12.7 17.3 25.4 6.35 0.794 4.762 1.588 6.35 1.191 17.859 17.4 8810 10800
11.112 CR 18 BR B BUUR BUU 99 28.575 15.875 11.112 7/16-20 12.7 17.3 25.4 6.35 0.794 4.762 1.588 6.35 1.191 17.859 17.4 11100 11600
12.7 CR 20 BR B BUUR BUU 132 31.75 19.05 12.7 1/2-20 15.875 20.4 31.75 7.938 0.794 4.762 1.588 7.938 1.588 21.828 27.7 14200 16000
12.7 CR 22 BR B BUUR BUU 157 34.925 19.05 12.7 1/2-20 15.875 20.4 31.75 7.938 0.794 4.762 1.588 7.938 1.588 21.828 27.7 14200 16000
15.875 CR 24 BR B BUUR BUU 225 38.1 22.225 15.875 5/8-18 19.05 23.6 38.1 9.525 0.794 4.762 1.588 9.525 1.588 26.196 55.7 18600 24300
15.875 CR 26 BR B BUUR BUU 260 41.275 22.225 15.875 5/8-18 19.05 23.6 38.1 9.525 0.794 4.762 1.588 9.525 1.588 26.196 55.7 18600 24300
19.05 CR 28 BR B BUUR BUU 365 44.45 25.4 19.05 3/4-16 22.225 26.8 44.45 11.112 0.794 4.762 1.588 11.112 1.588 32.543 100 25100 38200
19.05 CR 30 BR B BUUR BUU 410 47.625 25.4 19.05 3/4-16 22.225 26.8 44.45 11.112 0.794 4.762 1.588 11.112 1.588 32.543 100 25100 38200
22.225 CR 32 BR B BUUR BUU 615 50.8 31.75 22.225 7/8-14 25.4 33.5 50.8 12.7 0.794 4.762 1.588 12.7 1.588 37.306 162 32500 63900
22.225 CR 36 BR B BUUR BUU 750 57.15 31.75 22.225 7/8-14 25.4 33.5 50.8 12.7 0.794 4.762 1.588 12.7 1.588 37.306 162 32500 63900
