CFS-Cam Follower

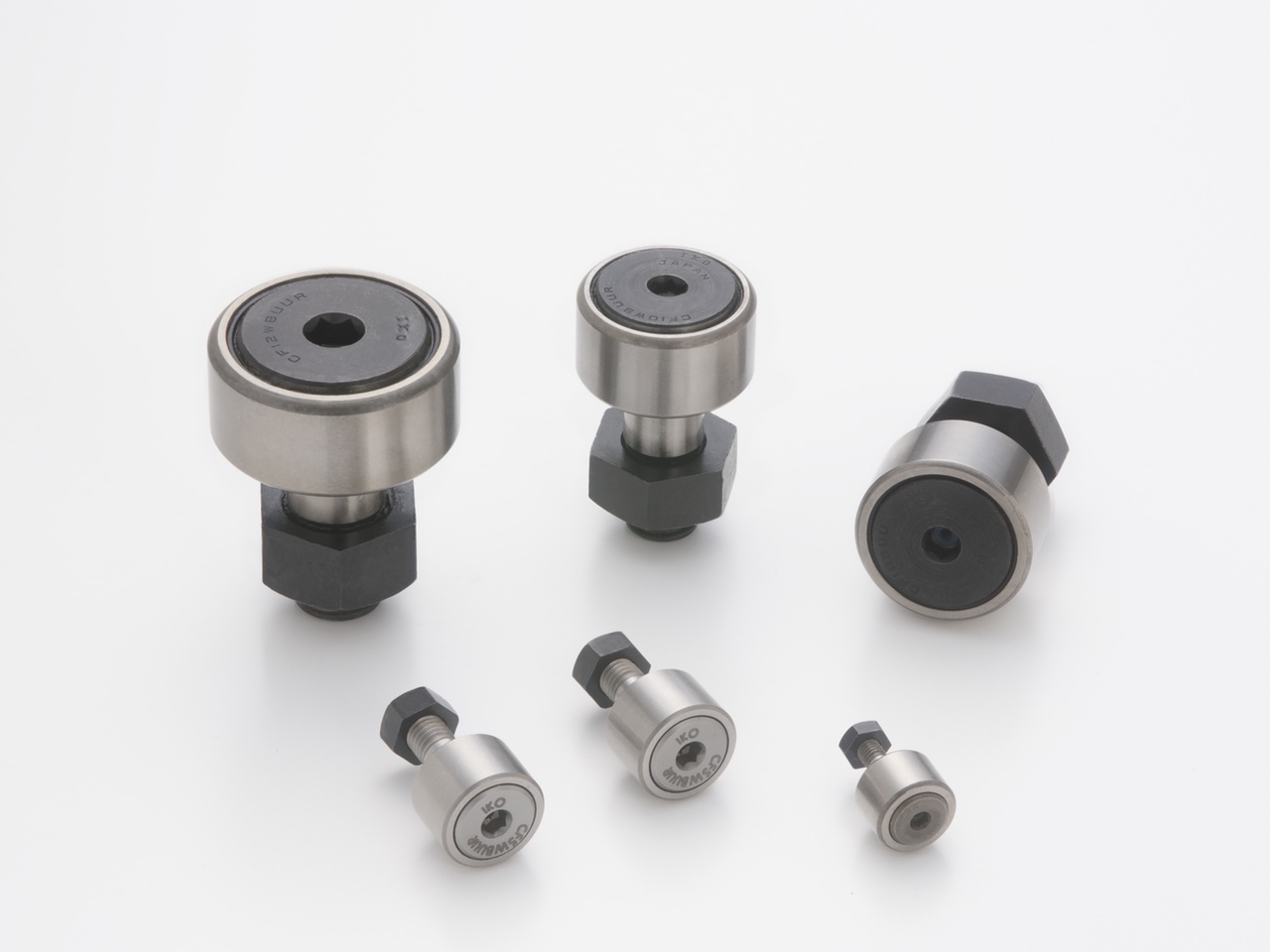

The Jms Industrial Solution CFS Miniature Type Cam Follower bearings are high-precision components designed for light-loaded, high-accuracy cam mechanisms and linear motion applications.

Request Quote

The IKO CFS Miniature Type Cam Follower bearings are high-precision components designed for light-loaded, high-accuracy cam mechanisms and linear motion applications. They incorporate extremely fine needle rollers within a thick-walled outer ring, resulting in a compact design with a small outer ring diameter relative to the stud diameter.

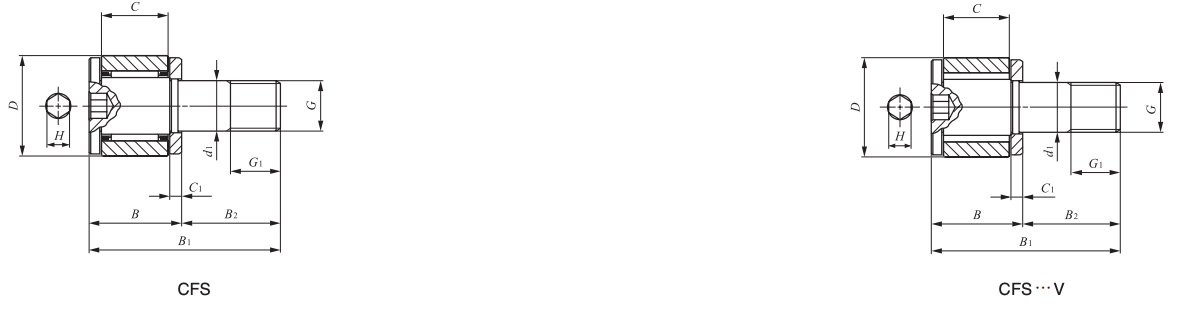

Identification Number	Stud Dia. (mm)	With Cage	full compliment	Mass (g)	di (mm)	D (mm)	C (mm)	G	G1	B (mm)	b1	b2	C1 (mm)	H (mm)	Mounting Min. (mm)	Torque (N-cm)	Dynamic Load Rating C (N)	Static Load Rating Co (N)	Max Static Load (N)
CFS 2	2	Yes		0.6	2	4.5	2.5	M2×0.4	2	4	8	4	0.7	0.9	4.3	9.1	288	202	202
CFS 2 V	2		yes	0.6	2	4.5	2.5	M2×0.4	2	4	8	4	0.7	0.9	4.3	9.1	768	734	229
CFS 2.5	2.5	Yes		1	2.5	5	2.5	M2.5×0.45	2.5	4.5	9.5	5	0.7	0.9	4.8	18.7	428	351	351
CFS 2.5 V	2.5		yes	1	2.5	5	2.5	M2.5×0.45	2.5	4.5	9.5	5	0.7	0.9	4.8	18.7	1000	1080	360
CFS 3	3	Yes		2	3	6	3	M3×0.5	3	5.5	11.5	6	0.7	1.3	5.8	33.5	629	611	484
CFS 3 V	3		yes	2	3	6	3	M3×0.5	3	5.5	11.5	6	0.7	1.3	5.8	33.5	1420	1790	484
CFS 4	4	Yes		4	4	7	4	M4×0.7	4	7	15	8	1	1.5	7.7	77.7	1120	1120	919
CFS 4 V	4		yes	4	4	7	4	M4×0.7	4	7	15	8	1	1.5	7.7	77.7	2370	3000	919
CFS 5	5	Yes		7	5	10	6	M5×0.8	5	8	18	10	1	2	9.6	158	1570	1850	1570
CFS 5 V	5		yes	7	5	10	6	M5×0.8	5	8	18	10	1	2	9.6	158	3180	4700	1570
CFS 6	6	Yes		13	6	12	7	M6×1	6	9.5	21.5	12	1.2	2.5	11.6	268	2090	2200	2150
CFS6 V	6		Yes	13	6	12	7	M6×1	6	9.5	21.5	12	1.2	2.5	11.6	268	4610	6250	2150
