Product Overview

CF-Cam Follower

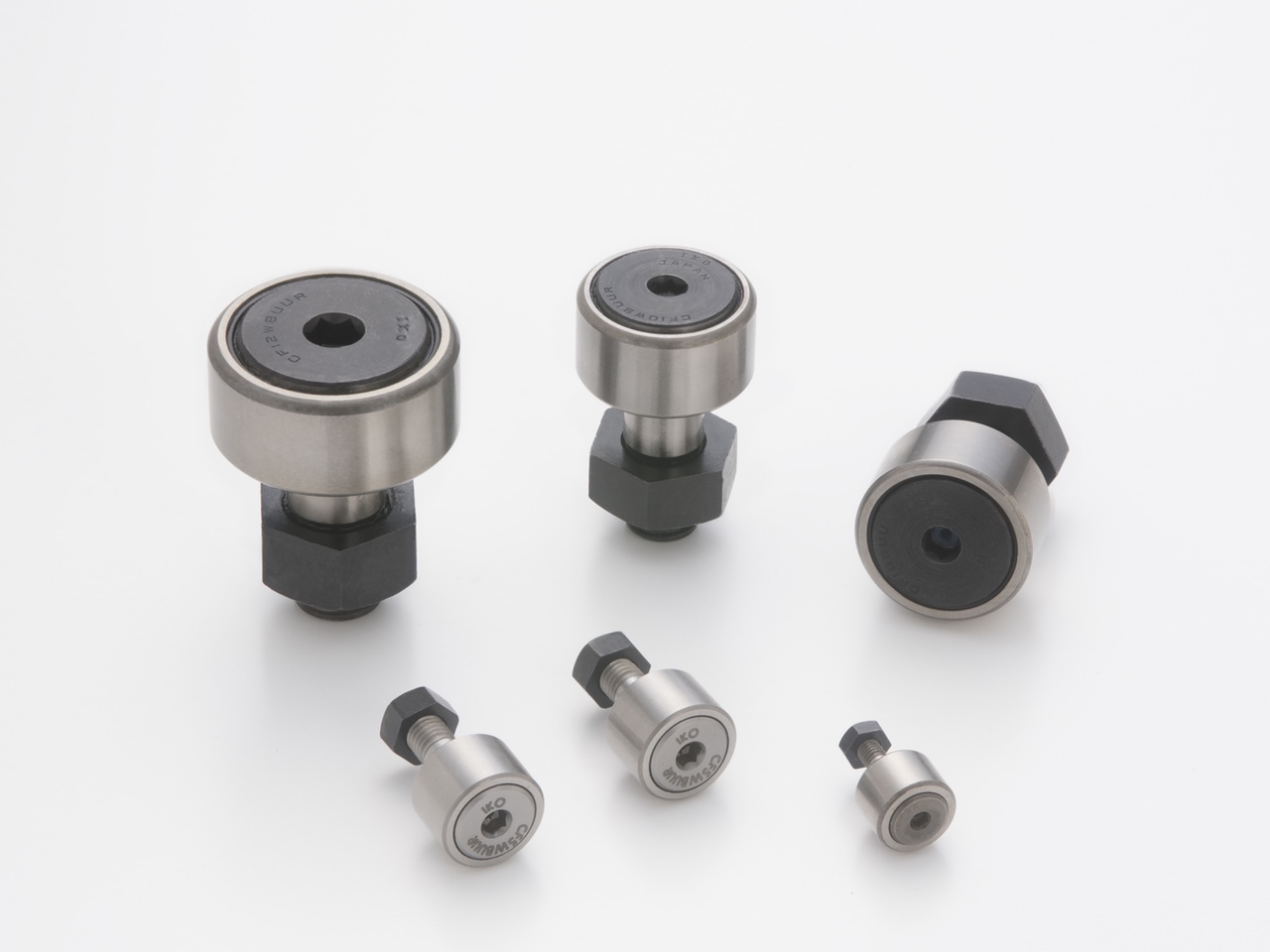

Jms Industrial Solution Cam Followers (CF Series) are bearings with a stud that incorporates needle rollers in a thick-walled outer ring. These robust bearings are specifically designed for outer ring rotation and function as follower bearings for cam mechanisms and linear motions.

Request Quote

Size	Model	Type	Seal	Mass	D	C	Thread	Dynamic	Static	Speed	Weight
3	CF 3 BR	Crowned	Shielded	4.3	10	7	M3×0.5	1500	1020	384	0.34
3	CF 3		Cylindrical	4.3	10	7	M3×0.5	1500	1020	384	0.34
4	CF 4 BR	Crowned	Shielded	7.4	12	8	M4×0.7	2070	1590	834	0.78
4	CF 4 B	Cylindrical	Shielded	7.4	12	8	M4×0.7	2070	1590	834	0.78
5	CF 5 BR	Crowned	Shielded	10.3	13	9	M5×0.8	2520	2140	1260	1.6
5	CF 5 B	Cylindrical	Shielded	10.3	13	9	M5×0.8	2520	2140	1260	1.6
6	CF 6		Cylindrical	18.5	16	11	M6×1	3660	3650	1950	2.7
8	CF 8		Cylindrical	28.5	19	11	M8×1.25	4250	4740	4620	6.5
8	CF 8 BR	Crowned	Shielded	28.5	19	11	M8×1.25	4250	4740	4620	6.5
8	CF 8 B	Cylindrical	Shielded	28.5	19	11	M8×1	4250	4740	4620	6.5
10	CF 10 BR	Crowned	Shielded	45	22	12	M10×1.25	5430	6890	6890	13.8
10	CF 10 BRM	Crowned	Shielded	45	22	12	M10×1	5430	6890	6890	13.8
10	CF 10-1 BR	Crowned	Shielded	60	26	12	M10×1.25	5430	6890	6890	14.7
10	CF 10-1 BRM	Crowned	Shielded	60	26	12	M10×1	5430	6890	6890	14.7
12	CF 12 BR	Crowned	Shielded	95	30	14	M12×1.5	7910	9790	9790	21.9
12	CF 12-1 BR	Crowned	Shielded	105	32	14	M12×1.5	7910	9790	9790	21.9
16	CF 16 BR	Crowned	Shielded	170	35	18	M16×1.5	12000	18300	18300	58.5
18	CF 18 BR	Crowned	Shielded	250	40	20	M18×1.5	14800	25200	25200	86.2
20	CF 20 BR	Crowned	Shielded	460	47	24	M20×1.5	20700	34600	34600	119
20	CF 20-1 BR	Crowned	Shielded	385	47	24	M20×1.5	20700	34600	34600	119
24	CF 24 BR	Crowned	Shielded	815	62	29	M24×1.5	30500	52600	52000	215
24	CF 24-1 BR	Crowned	Shielded	1140	72	29	M24×1.5	30500	52600	52000	215
30	CF 30 BR	Crowned	Shielded	1870	80	35	M30×1.5	—	45400	85100	438
30	CF 30-1 BR	Crowned	Shielded	2030	80	35	M30×1.5	—	45400	85100	438
30	CF 30-2 BR	Crowned	Shielded	2220	90	35	M30×1.5	—	45400	85100	438
8	CF 8 VBR	Crowned	Shielded	29	19	11	M8×1.25	8170	11200	4620	6.5
8	CF 8 VB	Cylindrical	Shielded	29	19	11	M8×1	8170	11200	4620	7.1
8	CF 8 VBUUR	Crowned	Sealed	29	19	11	M8×1.25	8170	11200	4620	6.5
8	CF 8 VBUU	Cylindrical	Sealed	29	19	11	M8×1	8170	11200	4620	7.1
10	CF 10 VBR	Crowned	Shielded	46	22	12	M10×1.25	9570	14500	8650	13.8
10	CF 10 VB	Cylindrical	Shielded	46	22	12	M10×1	9570	14500	8650	14.7
10	CF 10 VBUUR	Crowned	Sealed	46	22	12	M10×1.25	9570	14500	8650	13.8
10	CF 10 VBUU	Cylindrical	Sealed	46	22	12	M10×1	9570	14500	8650	14.7
10	CF 10-1 VBR	Crowned	Shielded	61	26	12	M10×1.25	9570	14500	8650	13.8
10	CF 10-1 VB	Cylindrical	Shielded	61	26	12	M10×1	9570	14500	8650	14.7
10	CF 10-1 VBUUR	Crowned	Sealed	61	26	12	M10×1.25	9570	14500	8650	13.8
10	CF 10-1 VBUU	Cylindrical	Sealed	61	26	12	M10×1	9570	14500	8650	14.7
12	CF 12 VBR	Crowned	Shielded	97	30	14	M12×1.5	13500	19700	13200	21.9
12	CF 12 VB	Cylindrical	Shielded	97	30	14	M12×1.5	13500	19700	13200	21.9
12	CF 12 VBUUR	Crowned	Sealed	97	30	14	M12×1.5	13500	19700	13200	21.9
12	CF 12 VBUU	Cylindrical	Sealed	97	30	14	M12×1.5	13500	19700	13200	21.9
12	CF 12-1 VBR	Crowned	Shielded	107	32	14	M12×1.5	13500	19700	13200	21.9
12	CF 12-1 VB	Cylindrical	Shielded	107	32	14	M12×1.5	13500	19700	13200	21.9
12	CF 12-1 VBUUR	Crowned	Sealed	107	32	14	M12×1.5	13500	19700	13200	21.9
12	CF 12-1 VBUU	Cylindrical	Sealed	107	32	14	M12×1.5	13500	19700	13200	21.9
16	CF 16 VBR	Crowned	Shielded	173	35	18	M16×1.5	20700	37600	23200	58.5
16	CF 16 VB	Cylindrical	Shielded	173	35	18	M16×1.5	20700	37600	23200	58.5
16	CF 16 VBUUR	Crowned	Sealed	173	35	18	M16×1.5	20700	37600	23200	58.5
16	CF 16 VBUU	Cylindrical	Sealed	173	35	18	M16×1.5	20700	37600	23200	58.5
18	CF 18 VBR	Crowned	Shielded	255	40	20	M18×1.5	25300	51300	31100	86.2
18	CF 18 VB	Cylindrical	Shielded	255	40	20	M18×1.5	25300	51300	31100	86.2
18	CF 18 VBUUR	Crowned	Sealed	255	40	20	M18×1.5	25300	51300	31100	86.2
18	CF 18 VBUU	Cylindrical	Sealed	255	40	20	M18×1.5	25300	51300	31100	86.2
20	CF 20 VBR	Crowned	Shielded	465	47	24	M20×1.5	33200	64500	37500	119
20	CF 20 VB	Cylindrical	Shielded	465	47	24	M20×1.5	33200	64500	37500	119
20	CF 20 VBUUR	Crowned	Sealed	465	47	24	M20×1.5	33200	64500	37500	119
20	CF 20 VBUU	Cylindrical	Sealed	465	47	24	M20×1.5	33200	64500	37500	119
20	CF 20-1 VBR	Crowned	Shielded	390	47	24	M20×1.5	33200	64500	37500	119
20	CF 20-1 VB	Cylindrical	Shielded	390	47	24	M20×1.5	33200	64500	37500	119
20	CF 20-1 VBUUR	Crowned	Sealed	390	47	24	M20×1.5	33200	64500	37500	119
20	CF 20-1 VBUU	Cylindrical	Sealed	390	47	24	M20×1.5	33200	64500	37500	119
24	CF 24 VBR	Crowned	Shielded	820	62	29	M24×1.5	46600	92000	52000	215
24	CF 24 VB	Cylindrical	Shielded	820	62	29	M24×1.5	46600	92000	52000	215
24	CF 24 VBUUR	Crowned	Sealed	820	62	29	M24×1.5	46600	92000	52000	215
24	CF 24 VBUU	Cylindrical	Sealed	820	62	29	M24×1.5	46600	92000	52000	215
