Product Overview

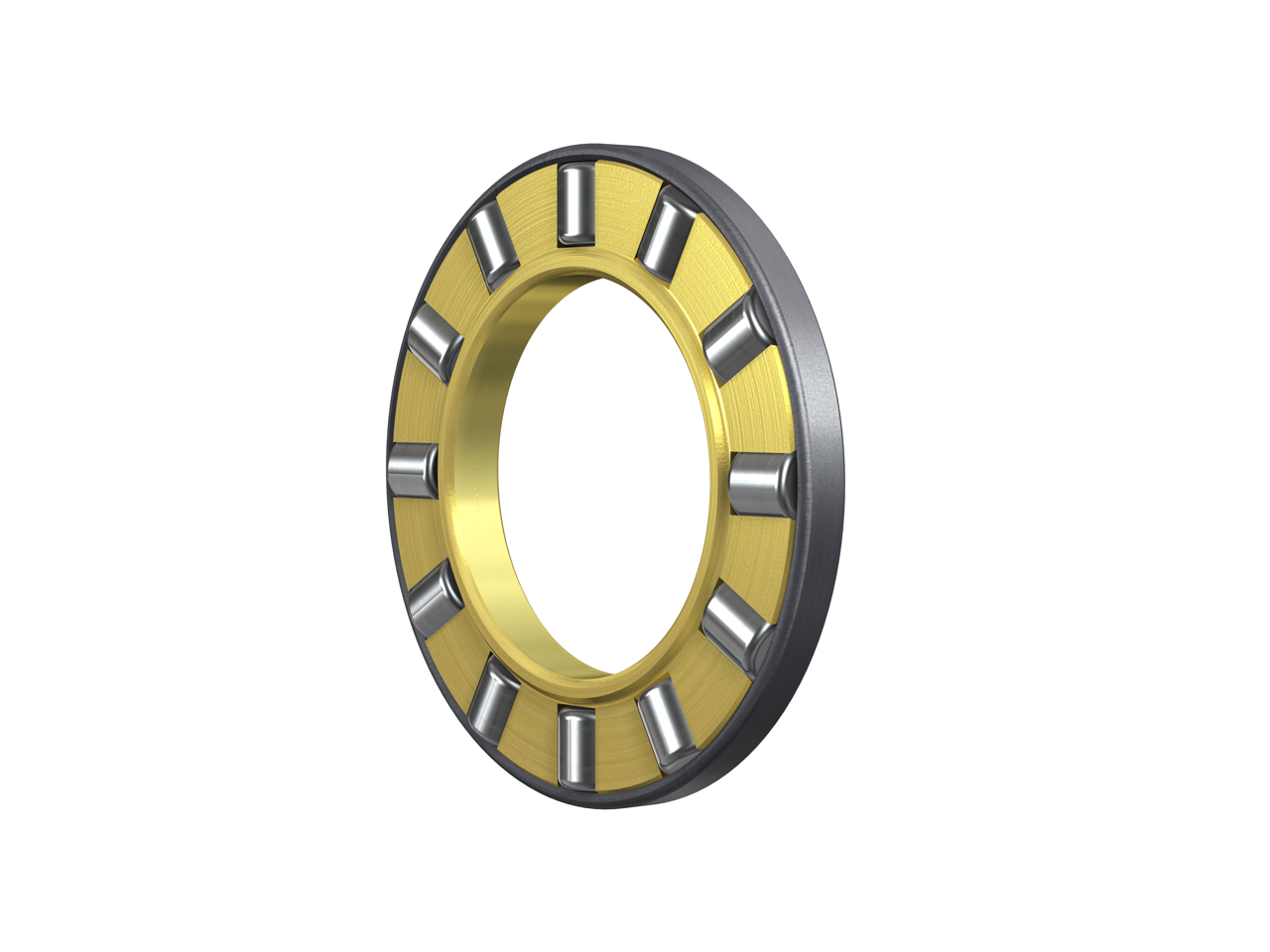

AZ-AZK-Thrust Roller Bearing

The Jms Industrial Solution Thrust Bearings are engineered with precisely made cages and rollers, resulting in products with high rigidity and exceptional load capacities that can be utilized effectively even in small spaces.

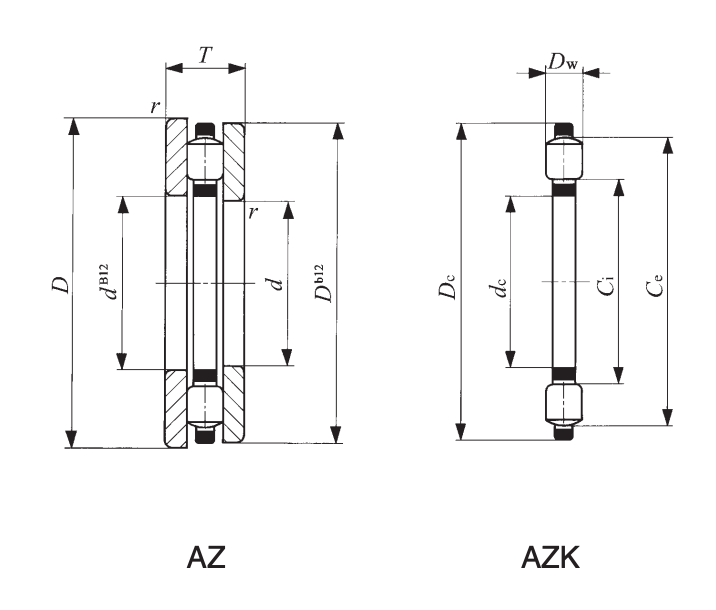

IKO Thrust Bearings are engineered with precisely made cages and rollers, resulting in products with high rigidity and exceptional load capacities that can be utilized effectively even in small spaces. The AZK series consists of the caged cylindrical rollers alone, while the complete AZ bearings combine the AZK cage and rollers with an inner ring (WS) and an outer ring (GS).

Select Shaft Washer No. Mass D Dw s B rs Ci Ce C C₀ Speed
10 AZ 10249 / AZK 10243.5 24.6 / 8.6 24 3.5 - 2.75 0.3 - - 8990 19100 18000
12 AZ 12269 / AZK 12263.5 26.5 / 8.7 26 3.5 - 2.75 0.3 - - 10400 23900 16000
15 AZ 15289 / AZK 15283.5 28 / 9.4 28 3.5 - 2.75 0.3 - - 10200 23000 14000
17 AZ 17309 / AZK 17303.5 30.5 / 10.1 30 3.5 - 2.75 0.3 - - 11400 28600 13000
20 AZ 203510 / AZK 20354.5 45.5 / 17.9 35 4.5 - 2.75 0.3 - - 19000 48700 11000
25 AZ 254211 / AZK 25425 70 / 28 42 5 - 3 0.6 - - 22700 60700 9000
30 AZ 304711 / AZK 30475 79 / 31 47 5 - 3 0.6 - - 27400 81000 8000
35 AZ 355212 / AZK 35525 99 / 36 52 5 - 3.5 0.6 - - 29100 91100 7000
40 AZ 406013 / AZK 40606 139 / 54 60 6 - 3.5 0.6 - - 41700 133000 6000
50 AZ 507014 / AZK 50706 185 / 68 70 6 - 4 0.6 - - 43300 148000 5000
60 AZ 608517 / AZK 60857.5 345 / 135 85 7.5 - 4.75 1 - - 64600 224000 4000
80 AZ 8010519 / AZK 801057.5 495 / 171 105 7.5 - 5.75 1 - - 74500 292000 3000
100 AZ 10013525 / AZK 10013511 1290 / 490 135 11 - 7 1 - - 136000 522000 2500
