Product Overview

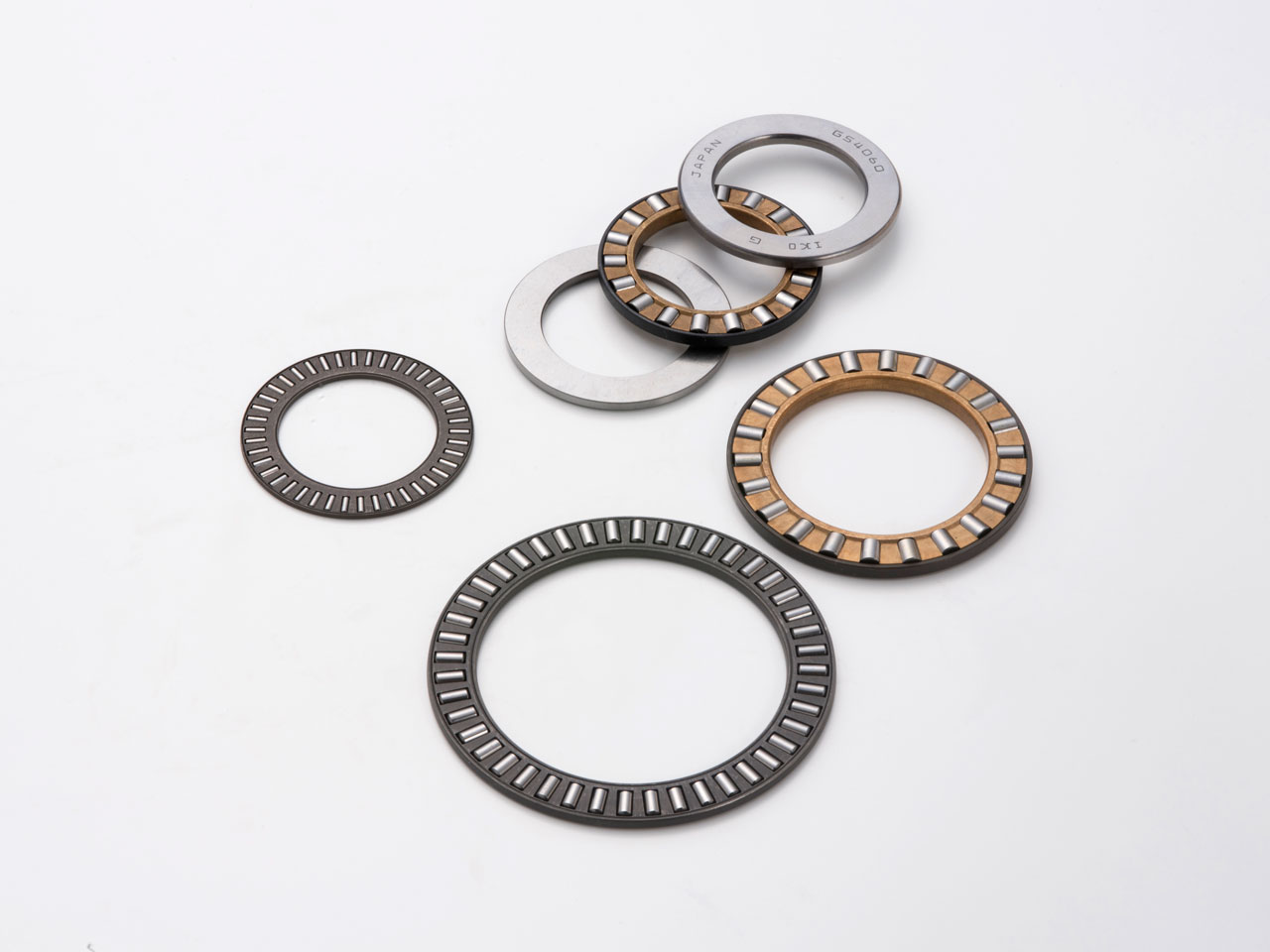

AS-Washer

The Jms Industrial Solutions AS-Washer is a high-precision, super-thin thrust washer designed to act as a hardened and ground raceway for thrust needle roller bearings. It ensures compact design, durability, and high load capacity.

Request Quote

The Jms Industrial Solution AS-Washer is a high-precision, super-thin thrust washer designed to be used as a hardened and ground raceway for IKO Thrust Needle Roller Cage Assemblies (AXK, AZK series). When the machine's mounting surface cannot be heat-treated and ground to serve as a raceway, the AS-Washer provides a high-quality alternative, allowing for a compact and durable thrust bearing arrangement.

Shaft	Washer No.	Mass	D	Dw	s	B	rs	Ci	Ce	C	C₀	Speed
10	AS 1024	2.9	24	2	1	2.75	0.3	14	22	7820	23900	15000
12	AS 1226	3.2	26	2	1	2.75	0.3	16	24	8340	26900	13000
15	AS 1528	3.4	28	2	1	2.75	0.3	18	26	8830	29900	12000
16	AS 1629	3.6	29	2	1	2.75	0.3	19	27	9070	31400	11000
17	AS 1730	3.7	30	2	1	2.75	0.3	20	28	9320	32900	10500
18	AS 1831	3.9	31	2	1	2.75	0.3	21	29	9550	34400	10000
20	AS 2035	5	35	2	1	2.75	0.3	23	33	11700	46500	9000
25	AS 2542	6.9	42	2	1	3	0.6	29	40	14400	64700	7500
30	AS 3047	7.9	47	2	1	3	0.6	34	45	15400	73300	6500
35	AS 3552	8.9	52	2	1	3.5	0.6	39	50	16300	81900	5500
40	AS 4060	12.1	60	3	1	3.5	0.6	45	57	24200	108000	5000
45	AS 4565	13.3	65	3	1	4	0.6	50	62	25900	121000	4500
50	AS 5070	14.5	70	3	1	4	0.6	55	67	27600	135000	4000
55	AS 5578	18.5	78	3	1	5	0.6	61	75	32400	171000	4000
60	AS 6085	22	85	3	1	4.75	1	66	82	38200	219000	3500
65	AS 6590	23.5	90	3	1	5.25	1	71	87	40100	237000	3000
70	AS 7095	25	95	4	1	5.25	1	75	91	47400	244000	3000
75	AS 75100	26.5	100	4	1	5.75	1	80	96	48400	256000	3000
80	AS 80105	28	105	4	1	5.75	1	85	101	49500	267000	2500
85	AS 85110	29.5	110	4	1	5.75	1	90	106	50300	279000	2500
90	AS 90120	38	120	4	1	6.5	1	96	116	64000	394000	2500
100	AS 100135	50	135	4	1	7	1	107	131	80300	541000	2000
